三星samsung硬盘HM501JI二次开盘数据恢复-经典的二次恢复案例

更新时间：2021-11-04

浏览次数：858

Tags: , , ,

三星samsung硬盘HM501JI二次开盘数据恢复
今天接到一个二次开盘的案例,按数据恢复公司的形容,这个是假标签的硬盘, 硬盘上的标签跟盘实际型号不同,除外之外还有电路板也不一样,板装不了, 听到这里我觉得很奇怪了, 怎么会电路板装不上? 难道是客人自己换了其它型号的电路板? 越听越觉得这个案例有趣, 过了一会盘送过来处理了.

HI500HI recovery

HI500HI recovery

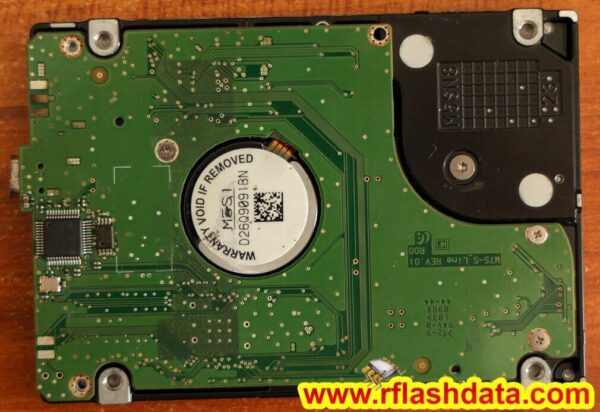

samsung M7S recovery

samsung M7S recovery


上手一看, 电路板不对, 跟盘的对不上, 板上的USB接口损坏, 同行之前还尝试了看USB接口. 拿硬盘的型号查查电路板的型号,发现确认盘是配的, 但板跟盘体不配,盘体上的标没了, 只有盘盖子上的标签写着HM501JI三星的一款移动硬盘. 按着库存的资料找了个合适的电路板接上数据恢复设备检测看看盘到底什么问题.

0   0  &$  00 0@1.5G Link Ok!
IS=+00003
SO
 H: +00000
 Ld
 SK C: 000056AC
ENG>SRV> SR : +00000
ATO
 C: 0000032A  H: +00000
 SK C: 00000338
 SR : +00001
ATO
 C: 0000032A  H: +00000
 SK C: 00000334
 SR : +00002
 Ud
 H: +00000
 Ld
UF:1stGe
 H: +00001
 Ld
 SK C: 00002238
 SR : +00003
ATO
 C: 0000032A  H: +00000
 SK C: 0000033D
 Ud
 H: +00000
 Ld
 SK C: 000087A4

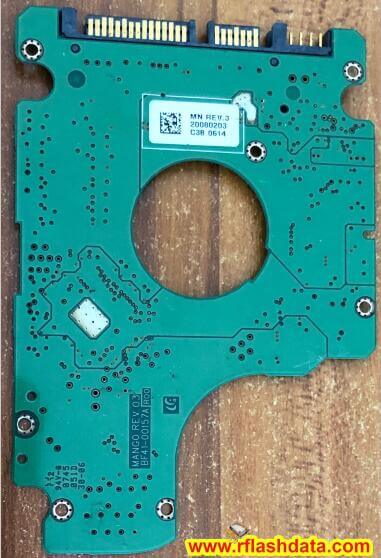

PCB BF41-00157A

PCB BF41-00157A


这块是正确的电路板, 可以看到接硬盘马达位置的形状有很大的差别,原来的板根本放不下.
看着磁头问题不大,但完全访问不到固件区,因为电路板我是随便拿的, 板上的ROM跟这个盘的不一定配, 那就试着重配看看什么情况.

 1.5G Limited
 SPW No Link?

IS=+00003
SO
 H: +00000
 Ld
AFSAM
 C: 00000704  H: +00000
UF:Gferr
 H: +00001
 SK C: 000058D6
ENG>SRV>
  SvoTbl Loaded
AFSAM
 C: 0001FFF6  H: +00000
UF:1stGe
 H: +00001
UF:1stGe
 H: +00000
UF:1stGe
 H: +00001
AFSAM
 C: 0001F8D1  H: +00001
UF:Gferr
 Ud
 H: +00000
 Ld
 SK C: 00001C6C
AFSAM
 C: 0001FFF6  H: +00000
UF:1stGe
 H: +00001
UF:1stGe
 H: +00000
UF:1stGe
 H: +00001
UF:1stGe
 Ud
 H: +00000

折腾了一下, 盘可以顺利访问固件区了

HErr! 1301
HErr! 1140
HErr! 1140
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301
HErr! 1301

不过这个盘的磁头并不是好的, 有问题但没完全坏掉, 配完板后, 还能读固件区,完全读不到用户数据. 尝试备份一下整个硬盘的固件, 结果读过过程中大量报错, 看来这个磁头已经不能再用了, 找个合适的配置更换磁头再来

****************************************
   Modules checking
      00 FSI.................................. : Head: 0, Ok
      00 FSI.................................. : Head: 1, Ok
      02 FIT.................................. : Head: 0, Ok
      02 FIT.................................. : Head: 1, Ok
      06 MLIST................................ : Head: 0, Ok
      06 MLIST................................ : Head: 1, Ok
      07 SRVTBL............................... : Head: 0, Ok
      07 SRVTBL............................... : Head: 1, Ok
      53 SEEKTIME............................. : Head: 0, Ok
      53 SEEKTIME............................. : Head: 1, Ok
      8E ..................................... : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:    1): Device error detected "AMN"
      8E ..................................... : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:    1): Device error detected "AMN"
      5D SNBACKUP............................. : Head: 0, Ok
      5D SNBACKUP............................. : Head: 1, Ok
      5F LMBACKUP............................. : Head: 0, Ok
      5F LMBACKUP............................. : Head: 1, Ok
      4C CAPSELDA............................. : Head: 0, Ok
      4C CAPSELDA............................. : Head: 1, Ok
      61 REF_TMR.............................. : Head: 0, Read sector error (Cyl:  0, Head: 0, Sec:   27): Device error detected "AMN"
      61 REF_TMR.............................. : Head: 1, Read sector error (Cyl:  0, Head: 1, Sec:   27): Device error detected "AMN"
      5B MODEL_ID............................. : Head: 0, Ok
      5B MODEL_ID............................. : Head: 1, Module header error
      5E ARCOTBL2............................. : Head: 0, Ok
      5E ARCOTBL2............................. : Head: 1, Ok
      77 PROC_CNT............................. : Head: 0, Ok
      77 PROC_CNT............................. : Head: 1, Ok
      75 STR_RSRT............................. : Head: 0, Ok
      75 STR_RSRT............................. : Head: 1, Ok
      04 CONFIG............................... : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:    1): Device error detected "AMN"
      04 CONFIG............................... : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:    1): Device error detected "AMN"
      05 SNTBL................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:    3): Device error detected "AMN"
      05 SNTBL................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:    3): Device error detected "AMN"
      08 BISPT................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:    5): Device error detected "AMN"
      08 BISPT................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:    5): Device error detected "AMN"
      09 BRSLT................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   10): Device error detected "AMN"
      09 BRSLT................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   10): Device error detected "AMN"
      7B CRITERIA............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   11): Device error detected "AMN"
      7B CRITERIA............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   11): Device error detected "AMN"
      0B FINALTST............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   12): Device error detected "AMN"
      0B FINALTST............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   12): Device error detected "AMN"
      0A ARCOTBL.............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   30): Device error detected "AMN"
      0A ARCOTBL.............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   30): Device error detected "AMN"
      7A GEO_TBL.............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   46): Device error detected "AMN"
      7A GEO_TBL.............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   46): Device error detected "AMN"
      0C VLISTHDR............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   78): Device error detected "AMN"
      0C VLISTHDR............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   78): Device error detected "AMN"
      0D VLIST................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   79): Device error detected "AMN"
      0D VLIST................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   79): Device error detected "AMN"
      55 FDT_TBL.............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   96): Device error detected "AMN"
      55 FDT_TBL.............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   96): Device error detected "AMN"
      54 RDRTY_01............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:   97): Device error detected "AMN"
      54 RDRTY_01............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:   97): Device error detected "AMN"
      0E SLISTHDR............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  111): Device error detected "AMN"
      0E SLISTHDR............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  111): Device error detected "AMN"
      0F SLIST................................ : Head: 0, Read sector error (Cyl:  6, Head: 0, Sec:    1): Device error detected "AMN"
      0F SLIST................................ : Head: 1, Read sector error (Cyl:  6, Head: 1, Sec:    1): Device error detected "AMN"
      11 ALIST................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  201): Device error detected "AMN"
      11 ALIST................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  201): Device error detected "AMN"
      81 RLIST................................ : Head: 0, Read sector error (Cyl: 16, Head: 0, Sec:  201): Device error detected "AMN"
      81 RLIST................................ : Head: 1, Read sector error (Cyl: 16, Head: 1, Sec:  201): Device error detected "UNC"
      64 ALISTHDR............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  372): Device error detected "AMN"
      64 ALISTHDR............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  372): Device error detected "AMN"
      82 RLIST_H.............................. : Head: 0, Read sector error (Cyl: 16, Head: 0, Sec:  372): Device error detected "AMN"
      82 RLIST_H.............................. : Head: 1, Read sector error (Cyl: 16, Head: 1, Sec:  372): Device error detected "UNC"
      15 SRVTBL2.............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  383): Device error detected "AMN"
      15 SRVTBL2.............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  383): Device error detected "AMN"
      12 TMPRTR............................... : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  395): Device error detected "AMN"
      12 TMPRTR............................... : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  395): Device error detected "AMN"
      17 OVERLAY.............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  401): Device error detected "AMN"
      17 OVERLAY.............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  401): Device error detected "AMN"
      10 TLIST................................ : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  641): Device error detected "AMN"
      10 TLIST................................ : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  641): Device error detected "AMN"
      16 CHN_TBL2............................. : Head: 0, Read sector error (Cyl:  1, Head: 0, Sec:  701): Device error detected "AMN"
      16 CHN_TBL2............................. : Head: 1, Read sector error (Cyl:  1, Head: 1, Sec:  701): Device error detected "AMN"
      51 M30CODE.............................. : Head: 0, Read sector error (Cyl:  2, Head: 0, Sec:    1): Device error detected "AMN"
      51 M30CODE.............................. : Head: 1, Read sector error (Cyl:  2, Head: 1, Sec:    1): Device error detected "AMN"
      68 DLIST_H.............................. : Head: 0, Read sector error (Cyl:  3, Head: 0, Sec:    1): Device error detected "AMN"
      68 DLIST_H.............................. : Head: 1, Read sector error (Cyl:  3, Head: 1, Sec:    1): Device error detected "UNC"
      26 DLISTOR.............................. : Head: 0, Read sector error (Cyl:  3, Head: 0, Sec:    2): Device error detected "AMN"
      26 DLISTOR.............................. : Head: 1, Read sector error (Cyl:  3, Head: 1, Sec:    2): Device error detected "UNC"
      95 DLISTOR2............................. : Head: 0, Read sector error (Cyl: 24, Head: 0, Sec:    2): Device error detected "AMN"
      95 DLISTOR2............................. : Head: 1, Read sector error (Cyl: 24, Head: 1, Sec:    2): Device error detected "UNC"
      18 HDAF_RPT............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:    1): Device error detected "AMN"
      18 HDAF_RPT............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:    1): Device error detected "UNC"
      19 HD_DLIST............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:    2): Device error detected "AMN"
      19 HD_DLIST............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:    2): Device error detected "AMN"
      1A LUL.................................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:    4): Device error detected "AMN"
      1A LUL.................................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:    4): Device error detected "AMN"
      1B RCOSCRPT............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:    5): Device error detected "AMN"
      1B RCOSCRPT............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:    5): Device error detected "AMN"
      1D ERRTRK............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   55): Device error detected "AMN"
      1D ERRTRK............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   55): Device error detected "AMN"
      1E ERRZN................................ : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   57): Device error detected "AMN"
      1E ERRZN................................ : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   57): Device error detected "AMN"
      1F ERRDRV............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   58): Device error detected "AMN"
      1F ERRDRV............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   58): Device error detected "AMN"
      20 SRTDATA.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   59): Device error detected "AMN"
      20 SRTDATA.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   59): Device error detected "AMN"
      21 SRTSRVO.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   60): Device error detected "AMN"
      21 SRTSRVO.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   60): Device error detected "AMN"
      22 PARAM................................ : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   62): Device error detected "AMN"
      22 PARAM................................ : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   62): Device error detected "AMN"
      23 WKHEAD............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   72): Device error detected "AMN"
      23 WKHEAD............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   72): Device error detected "AMN"
      24 TSTPI................................ : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   82): Device error detected "AMN"
      24 TSTPI................................ : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   82): Device error detected "AMN"
      25 MRTUNEMT............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   86): Device error detected "AMN"
      25 MRTUNEMT............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   86): Device error detected "AMN"
      1C BTIME................................ : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:   91): Device error detected "AMN"
      1C BTIME................................ : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:   91): Device error detected "AMN"
      62 HD_BER............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  125): Device error detected "AMN"
      62 HD_BER............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  125): Device error detected "AMN"
      4E MRRTABLE............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  126): Device error detected "AMN"
      4E MRRTABLE............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  126): Device error detected "AMN"
      6D OWC_CSM.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  151): Device error detected "AMN"
      6D OWC_CSM.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  151): Device error detected "AMN"
      6C WC_CSM............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  153): Device error detected "AMN"
      6C WC_CSM............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  153): Device error detected "AMN"
      28 ERR_HDR.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  201): Device error detected "AMN"
      28 ERR_HDR.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  201): Device error detected "AMN"
      29 SMRT_HDR............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  202): Device error detected "AMN"
      29 SMRT_HDR............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  202): Device error detected "AMN"
      2A BISP_HDR............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  203): Device error detected "AMN"
      2A BISP_HDR............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  203): Device error detected "AMN"
      2B SERIAL_H............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  204): Device error detected "AMN"
      2B SERIAL_H............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  204): Device error detected "AMN"
      2C PES_HDR.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  205): Device error detected "AMN"
      2C PES_HDR.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  205): Device error detected "UNC"
      2D SVTRC_HD............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  206): Device error detected "AMN"
      2D SVTRC_HD............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  206): Device error detected "AMN"
      42 CAPSEL............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  511): Device error detected "AMN"
      42 CAPSEL............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  511): Device error detected "AMN"
      43 CURBPI............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  512): Device error detected "AMN"
      43 CURBPI............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  512): Device error detected "AMN"
      44 AZLCSM............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  513): Device error detected "AMN"
      44 AZLCSM............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  513): Device error detected "AMN"
      45 AZL_CSM0............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  514): Device error detected "AMN"
      45 AZL_CSM0............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  514): Device error detected "AMN"
      46 AZL_CSM1............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  515): Device error detected "AMN"
      46 AZL_CSM1............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  515): Device error detected "UNC"
      47 AZL_CSM2............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  516): Device error detected "AMN"
      47 AZL_CSM2............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  516): Device error detected "AMN"
      48 AZL_CSM3............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  517): Device error detected "AMN"
      48 AZL_CSM3............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  517): Device error detected "UNC"
      49 AZL_CSM4............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  518): Device error detected "AMN"
      49 AZL_CSM4............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  518): Device error detected "UNC"
      4A AZL_CSM5............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  519): Device error detected "AMN"
      4A AZL_CSM5............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  519): Device error detected "AMN"
      4B AZL_CSM6............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  520): Device error detected "AMN"
      4B AZL_CSM6............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  520): Device error detected "UNC"
      5C PWR_CNT.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  580): Device error detected "AMN"
      5C PWR_CNT.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  580): Device error detected "AMN"
      56 SPN_MNTR............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  581): Device error detected "AMN"
      56 SPN_MNTR............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  581): Device error detected "UNC"
      57 IRD_DOWN............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  585): Device error detected "AMN"
      57 IRD_DOWN............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  585): Device error detected "AMN"
      31 ATW_TEST............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  586): Device error detected "AMN"
      31 ATW_TEST............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  586): Device error detected "UNC"
      58 ATW_TST2............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  587): Device error detected "AMN"
      58 ATW_TST2............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  587): Device error detected "UNC"
      38 SPESB0............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  601): Device error detected "AMN"
      38 SPESB0............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  601): Device error detected "AMN"
      39 SPESB1............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  603): Device error detected "AMN"
      39 SPESB1............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  603): Device error detected "UNC"
      3A SPESB2............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  605): Device error detected "AMN"
      3A SPESB2............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  605): Device error detected "AMN"
      3B SPESB3............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  607): Device error detected "AMN"
      3B SPESB3............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  607): Device error detected "AMN"
      3C SPESB4............................... : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  609): Device error detected "AMN"
      3C SPESB4............................... : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  609): Device error detected "UNC"
      73 LOW_BER.............................. : Head: 0, Read sector error (Cyl:  4, Head: 0, Sec:  702): Device error detected "AMN"
      73 LOW_BER.............................. : Head: 1, Read sector error (Cyl:  4, Head: 1, Sec:  702): Device error detected "AMN"
      27 GEO_00............................... : Head: 0, Read sector error (Cyl:  7, Head: 0, Sec:    1): Device error detected "AMN"
      27 GEO_00............................... : Head: 1, Read sector error (Cyl:  7, Head: 1, Sec:    1): Device error detected "AMN"
      90 TNU_LOG.............................. : Head: 0, Read sector error (Cyl:  8, Head: 0, Sec:    1): Device error detected "AMN"
      90 TNU_LOG.............................. : Head: 1, Read sector error (Cyl:  8, Head: 1, Sec:    1): Device error detected "UNC"
      91 LONGSEEK............................. : Head: 0, Read sector error (Cyl:  8, Head: 0, Sec:    3): Device error detected "AMN"
      91 LONGSEEK............................. : Head: 1, Read sector error (Cyl:  8, Head: 1, Sec:    3): Device error detected "UNC"
      32 SMART................................ : Head: 0, Read sector error (Cyl: 11, Head: 0, Sec:    1): Device error detected "AMN"
      32 SMART................................ : Head: 1, Read sector error (Cyl: 11, Head: 1, Sec:    1): Device error detected "AMN"
      33 SMRT_LOG............................. : Head: 0, Read sector error (Cyl: 11, Head: 0, Sec:    3): Device error detected "AMN"
      33 SMRT_LOG............................. : Head: 1, Read sector error (Cyl: 11, Head: 1, Sec:    3): Device error detected "UNC"
      83 SDATAMEM............................. : Head: 0, Read sector error (Cyl: 11, Head: 0, Sec:   71): Device error detected "AMN"
      83 SDATAMEM............................. : Head: 1, Read sector error (Cyl: 11, Head: 1, Sec:   71): Device error detected "UNC"
      3D ELOG................................. : Head: 0, Read sector error (Cyl: 12, Head: 0, Sec:    1): Device error detected "AMN"
      3D ELOG................................. : Head: 1, Read sector error (Cyl: 12, Head: 1, Sec:    1): Device error detected "AMN"
      36 SV_TRACE............................. : Head: 0, Read sector error (Cyl: 20, Head: 0, Sec:    1): Device error detected "AMN"
      36 SV_TRACE............................. : Head: 1, Read sector error (Cyl: 20, Head: 1, Sec:    1): Device error detected "UNC"
      37 PES_LOG.............................. : Head: 0, Read sector error (Cyl: 20, Head: 0, Sec:   11): Device error detected "AMN"
      37 PES_LOG.............................. : Head: 1, Read sector error (Cyl: 20, Head: 1, Sec:   11): Device error detected "UNC"
      40 IPC_DBG.............................. : Head: 0, Read sector error (Cyl: 20, Head: 0, Sec:  302): Device error detected "AMN"
      40 IPC_DBG.............................. : Head: 1, Read sector error (Cyl: 20, Head: 1, Sec:  302): Device error detected "AMN"
      59 PMP.................................. : Head: 0, Read sector error (Cyl: 20, Head: 0, Sec:  305): Device error detected "AMN"
      59 PMP.................................. : Head: 1, Read sector error (Cyl: 20, Head: 1, Sec:  305): Device error detected "UNC"
      69 DLIST................................ : Head: 0, Read sector error (Cyl: 21, Head: 0, Sec:    1): Device error detected "AMN"
      69 DLIST................................ : Head: 1, Read sector error (Cyl: 21, Head: 1, Sec:    1): Device error detected "UNC"
      7C FOD_FH............................... : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:    2): Device error detected "AMN"
      7C FOD_FH............................... : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:    2): Device error detected "UNC"
      7E FOD_DATA............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   10): Device error detected "AMN"
      7E FOD_DATA............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   10): Device error detected "UNC"
      87 FOD_FREQ............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   29): Device error detected "AMN"
      87 FOD_FREQ............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   29): Device error detected "UNC"
      7D FOD_VU............................... : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   40): Device error detected "AMN"
      7D FOD_VU............................... : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   40): Device error detected "AMN"
      7F FOD_FHT.............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   48): Device error detected "AMN"
      7F FOD_FHT.............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   48): Device error detected "AMN"
      86 FOD_RST.............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   28): Device error detected "AMN"
      86 FOD_RST.............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   28): Device error detected "UNC"
      9A FOD_RSTH............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:  100): Device error detected "AMN"
      9A FOD_RSTH............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:  100): Device error detected "UNC"
      88 HSC_CYL.............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   56): Device error detected "AMN"
      88 HSC_CYL.............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   56): Device error detected "UNC"
      8C FOD_FH2.............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   57): Device error detected "AMN"
      8C FOD_FH2.............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   57): Device error detected "UNC"
      8B FOD_DAT2............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   65): Device error detected "AMN"
      8B FOD_DAT2............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   65): Device error detected "UNC"
      89 FOD_RST2............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   83): Device error detected "AMN"
      89 FOD_RST2............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   83): Device error detected "UNC"
      8A FOD_FRE2............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   84): Device error detected "AMN"
      8A FOD_FRE2............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   84): Device error detected "UNC"
      8D FOD_INSI............................. : Head: 0, Read sector error (Cyl: 15, Head: 0, Sec:   92): Device error detected "AMN"
      8D FOD_INSI............................. : Head: 1, Read sector error (Cyl: 15, Head: 1, Sec:   92): Device error detected "UNC"

   Password information.................... : Read sector error (Cyl:  1, Head: 1, Sec:  382): Device error detected "AMN"
   SLIST................................... : Read sector error (Cyl:  6, Head: 1, Sec:    1): Device error detected "AMN"
   TLIST................................... : Read sector error (Cyl:  1, Head: 1, Sec:  641): Device error detected "AMN"
   ALIST................................... : Read sector error (Cyl:  1, Head: 1, Sec:  201): Device error detected "AMN"
   DLIST................................... : Read sector error (Cyl: 21, Head: 1, Sec:    1): Device error detected "UNC"
****************************************
Test completed

SA structure test
****************************************
   Modules checking
   00 FSI.................................. : Ok
   02 FIT.................................. : Ok
   06 MLIST................................ : Ok
   07 SRVTBL............................... : Ok
   53 SEEKTIME............................. : Ok
   8E ..................................... : Read sector error (Cyl:  1, Head: 0, Sec:    1): Device error detected "AMN"
   5D SNBACKUP............................. : Ok
   5F LMBACKUP............................. : Ok
   4C CAPSELDA............................. : Ok
   61 REF_TMR.............................. : Read sector error (Cyl:  0, Head: 0, Sec:   27): Device error detected "AMN"
   5B MODEL_ID............................. : Ok
   5E ARCOTBL2............................. : Ok
   77 PROC_CNT............................. : Ok
   75 STR_RSRT............................. : Ok
   04 CONFIG............................... : Read sector error (Cyl:  1, Head: 0, Sec:    1): Device error detected "AMN"
   05 SNTBL................................ : Read sector error (Cyl:  1, Head: 0, Sec:    3): Device error detected "AMN"
   08 BISPT................................ : Read sector error (Cyl:  1, Head: 0, Sec:    5): Device error detected "AMN"
   09 BRSLT................................ : Read sector error (Cyl:  1, Head: 0, Sec:   10): Device error detected "AMN"
   7B CRITERIA............................. : Read sector error (Cyl:  1, Head: 0, Sec:   11): Device error detected "AMN"
   0B FINALTST............................. : Read sector error (Cyl:  1, Head: 0, Sec:   12): Device error detected "AMN"
   0A ARCOTBL.............................. : Read sector error (Cyl:  1, Head: 0, Sec:   30): Device error detected "AMN"
   7A GEO_TBL.............................. : Read sector error (Cyl:  1, Head: 0, Sec:   46): Device error detected "AMN"
   0C VLISTHDR............................. : Read sector error (Cyl:  1, Head: 0, Sec:   78): Device error detected "AMN"
   0D VLIST................................ : Read sector error (Cyl:  1, Head: 0, Sec:   79): Device error detected "AMN"
   55 FDT_TBL.............................. : Read sector error (Cyl:  1, Head: 0, Sec:   96): Device error detected "AMN"
   54 RDRTY_01............................. : Read sector error (Cyl:  1, Head: 0, Sec:   97): Device error detected "AMN"
   0E SLISTHDR............................. : Read sector error (Cyl:  1, Head: 0, Sec:  111): Device error detected "AMN"
   0F SLIST................................ : Read sector error (Cyl:  6, Head: 0, Sec:    1): Device error detected "AMN"
   11 ALIST................................ : Read sector error (Cyl:  1, Head: 0, Sec:  201): Device error detected "AMN"
   81 RLIST................................ : Read sector error (Cyl: 16, Head: 0, Sec:  201): Device error detected "AMN"
   64 ALISTHDR............................. : Read sector error (Cyl:  1, Head: 0, Sec:  372): Device error detected "AMN"
   82 RLIST_H.............................. : Read sector error (Cyl: 16, Head: 0, Sec:  372): Device error detected "AMN"
   15 SRVTBL2.............................. : Read sector error (Cyl:  1, Head: 0, Sec:  383): Device error detected "AMN"
   12 TMPRTR............................... : Read sector error (Cyl:  1, Head: 0, Sec:  395): Device error detected "AMN"
   17 OVERLAY.............................. : Read sector error (Cyl:  1, Head: 0, Sec:  401): Device error detected "AMN"
   10 TLIST................................ : Read sector error (Cyl:  1, Head: 0, Sec:  641): Device error detected "AMN"
   16 CHN_TBL2............................. : Read sector error (Cyl:  1, Head: 0, Sec:  701): Device error detected "AMN"
   51 M30CODE.............................. : Read sector error (Cyl:  2, Head: 0, Sec:    1): Device error detected "AMN"
   68 DLIST_H.............................. : Read sector error (Cyl:  3, Head: 0, Sec:    1): Device error detected "AMN"
   26 DLISTOR.............................. : Read sector error (Cyl:  3, Head: 0, Sec:    2): Device error detected "AMN"
   95 DLISTOR2............................. : Read sector error (Cyl: 24, Head: 0, Sec:    2): Device error detected "AMN"
   18 HDAF_RPT............................. : Read sector error (Cyl:  4, Head: 0, Sec:    1): Device error detected "AMN"
   19 HD_DLIST............................. : Read sector error (Cyl:  4, Head: 0, Sec:    2): Device error detected "AMN"
   1A LUL.................................. : Read sector error (Cyl:  4, Head: 0, Sec:    4): Device error detected "AMN"
   1B RCOSCRPT............................. : Read sector error (Cyl:  4, Head: 0, Sec:    5): Device error detected "AMN"
   1D ERRTRK............................... : Read sector error (Cyl:  4, Head: 0, Sec:   55): Device error detected "AMN"
   1E ERRZN................................ : Read sector error (Cyl:  4, Head: 0, Sec:   57): Device error detected "AMN"
   1F ERRDRV............................... : Read sector error (Cyl:  4, Head: 0, Sec:   58): Device error detected "AMN"
   20 SRTDATA.............................. : Read sector error (Cyl:  4, Head: 0, Sec:   59): Device error detected "AMN"
   21 SRTSRVO.............................. : Read sector error (Cyl:  4, Head: 0, Sec:   60): Device error detected "AMN"
   22 PARAM................................ : Read sector error (Cyl:  4, Head: 0, Sec:   62): Device error detected "AMN"
   23 WKHEAD............................... : Read sector error (Cyl:  4, Head: 0, Sec:   72): Device error detected "AMN"
   24 TSTPI................................ : Read sector error (Cyl:  4, Head: 0, Sec:   82): Device error detected "AMN"
   25 MRTUNEMT............................. : Read sector error (Cyl:  4, Head: 0, Sec:   86): Device error detected "AMN"
   1C BTIME................................ : Read sector error (Cyl:  4, Head: 0, Sec:   91): Device error detected "AMN"
   62 HD_BER............................... : Read sector error (Cyl:  4, Head: 0, Sec:  125): Device error detected "AMN"
   4E MRRTABLE............................. : Read sector error (Cyl:  4, Head: 0, Sec:  126): Device error detected "AMN"
   6D OWC_CSM.............................. : Read sector error (Cyl:  4, Head: 0, Sec:  151): Device error detected "AMN"
   6C WC_CSM............................... : Read sector error (Cyl:  4, Head: 0, Sec:  153): Device error detected "AMN"
   28 ERR_HDR.............................. : Read sector error (Cyl:  4, Head: 0, Sec:  201): Device error detected "AMN"
   29 SMRT_HDR............................. : Read sector error (Cyl:  4, Head: 0, Sec:  202): Device error detected "AMN"
   2A BISP_HDR............................. : Read sector error (Cyl:  4, Head: 0, Sec:  203): Device error detected "AMN"
   2B SERIAL_H............................. : Read sector error (Cyl:  4, Head: 0, Sec:  204): Device error detected "AMN"
   2C PES_HDR.............................. : Read sector error (Cyl:  4, Head: 0, Sec:  205): Device error detected "AMN"
   2D SVTRC_HD............................. : Read sector error (Cyl:  4, Head: 0, Sec:  206): Device error detected "AMN"
   42 CAPSEL............................... : Read sector error (Cyl:  4, Head: 0, Sec:  511): Device error detected "AMN"
   43 CURBPI............................... : Read sector error (Cyl:  4, Head: 0, Sec:  512): Device error detected "AMN"
   44 AZLCSM............................... : Read sector error (Cyl:  4, Head: 0, Sec:  513): Device error detected "AMN"
   45 AZL_CSM0............................. : Read sector error (Cyl:  4, Head: 0, Sec:  514): Device error detected "AMN"
   46 AZL_CSM1............................. : Read sector error (Cyl:  4, Head: 0, Sec:  515): Device error detected "AMN"
   47 AZL_CSM2............................. : Read sector error (Cyl:  4, Head: 0, Sec:  516): Device error detected "AMN"
   48 AZL_CSM3............................. : Read sector error (Cyl:  4, Head: 0, Sec:  517): Device error detected "AMN"
   49 AZL_CSM4............................. : Read sector error (Cyl:  4, Head: 0, Sec:  518): Device error detected "AMN"
   4A AZL_CSM5............................. : Read sector error (Cyl:  4, Head: 0, Sec:  519): Device error detected "AMN"
   4B AZL_CSM6............................. : Read sector error (Cyl:  4, Head: 0, Sec:  520): Device error detected "AMN"
   5C PWR_CNT.............................. : Read sector error (Cyl:  4, Head: 0, Sec:  580): Device error detected "AMN"
   56 SPN_MNTR............................. : Read sector error (Cyl:  4, Head: 0, Sec:  581): Device error detected "AMN"
   57 IRD_DOWN............................. : Read sector error (Cyl:  4, Head: 0, Sec:  585): Device error detected "AMN"
   31 ATW_TEST............................. : Read sector error (Cyl:  4, Head: 0, Sec:  586): Device error detected "AMN"
   58 ATW_TST2............................. : Read sector error (Cyl:  4, Head: 0, Sec:  587): Device error detected "AMN"
   38 SPESB0............................... : Read sector error (Cyl:  4, Head: 0, Sec:  601): Device error detected "AMN"
   39 SPESB1............................... : Read sector error (Cyl:  4, Head: 0, Sec:  603): Device error detected "AMN"
   3A SPESB2............................... : Read sector error (Cyl:  4, Head: 0, Sec:  605): Device error detected "AMN"
   3B SPESB3............................... : Read sector error (Cyl:  4, Head: 0, Sec:  607): Device error detected "AMN"
   3C SPESB4............................... : Read sector error (Cyl:  4, Head: 0, Sec:  609): Device error detected "AMN"
   73 LOW_BER.............................. : Read sector error (Cyl:  4, Head: 0, Sec:  702): Device error detected "AMN"
   27 GEO_00............................... : Read sector error (Cyl:  7, Head: 0, Sec:    1): Device error detected "AMN"
   90 TNU_LOG.............................. : Read sector error (Cyl:  8, Head: 0, Sec:    1): Device error detected "AMN"
   91 LONGSEEK............................. : Read sector error (Cyl:  8, Head: 0, Sec:    3): Device error detected "AMN"
   32 SMART................................ : Read sector error (Cyl: 11, Head: 0, Sec:    1): Device error detected "AMN"
   33 SMRT_LOG............................. : Read sector error (Cyl: 11, Head: 0, Sec:    3): Device error detected "AMN"
   83 SDATAMEM............................. : Read sector error (Cyl: 11, Head: 0, Sec:   71): Device error detected "AMN"
   3D ELOG................................. : Read sector error (Cyl: 12, Head: 0, Sec:    1): Device error detected "UNC"
   36 SV_TRACE............................. : Read sector error (Cyl: 20, Head: 0, Sec:    1): Device error detected "AMN"
   37 PES_LOG.............................. : Read sector error (Cyl: 20, Head: 0, Sec:   11): Device error detected "AMN"
   40 IPC_DBG.............................. : Read sector error (Cyl: 20, Head: 0, Sec:  302): Device error detected "AMN"
   59 PMP.................................. : Read sector error (Cyl: 20, Head: 0, Sec:  305): Device error detected "AMN"
   69 DLIST................................ : Read sector error (Cyl: 21, Head: 0, Sec:    1): Device error detected "AMN"
   7C FOD_FH............................... : Read sector error (Cyl: 15, Head: 0, Sec:    2): Device error detected "AMN"
   7E FOD_DATA............................. : Read sector error (Cyl: 15, Head: 0, Sec:   10): Device error detected "AMN"
   87 FOD_FREQ............................. : Read sector error (Cyl: 15, Head: 0, Sec:   29): Device error detected "AMN"
   7D FOD_VU............................... : Read sector error (Cyl: 15, Head: 0, Sec:   40): Device error detected "AMN"
   7F FOD_FHT.............................. : Read sector error (Cyl: 15, Head: 0, Sec:   48): Device error detected "AMN"
   86 FOD_RST.............................. : Read sector error (Cyl: 15, Head: 0, Sec:   28): Device error detected "AMN"
   9A FOD_RSTH............................. : Read sector error (Cyl: 15, Head: 0, Sec:  100): Device error detected "AMN"
   88 HSC_CYL.............................. : Read sector error (Cyl: 15, Head: 0, Sec:   56): Device error detected "AMN"
   8C FOD_FH2.............................. : Read sector error (Cyl: 15, Head: 0, Sec:   57): Device error detected "AMN"
   8B FOD_DAT2............................. : Read sector error (Cyl: 15, Head: 0, Sec:   65): Device error detected "AMN"
   89 FOD_RST2............................. : Read sector error (Cyl: 15, Head: 0, Sec:   83): Device error detected "AMN"
   8A FOD_FRE2............................. : Read sector error (Cyl: 15, Head: 0, Sec:   84): Device error detected "AMN"
   8D FOD_INSI............................. : Read sector error (Cyl: 15, Head: 0, Sec:   92): Device error detected "AMN"
****************************************
Test completed

Module 0D VLIST reading (Head: 0)
   Read sector error (Cyl:  1, Head: 0, Sec:   79): Device error detected "AMN"

这种硬盘HM160HI很老了,大概是2008的产品, 查了下库存手上只有一个配件,更换磁头看看情况

Family selected: MANGO 2.5''(SATA)
Model................................... : HM160HI

Technological ID
Flash version........................... : hh08tm59
Heads number............................ : 2
SA SPT.................................. : 960

Modules table loaded from SA

Service Area
Head map................................ : 1, 0
Part number............................. : 311611CS117450
USER password........................... : No
Module header of BISPT.................. : END

HDD resources backup
****************************************
   Reading modules
   ****************************************
      Into folder............................. : \Data\SABackup\Modules

      00 FSI.................................. : Ok
      02 FIT.................................. : Ok
      06 MLIST................................ : Ok
      07 SRVTBL............................... : Ok
      53 SEEKTIME............................. : Ok
      8E ..................................... : Ok
      5D SNBACKUP............................. : Ok
      5F LMBACKUP............................. : Ok
      4C CAPSELDA............................. : Ok
      Read sector error (Cyl:  0, Head: 1, Sec:   27): Device error detected "AMN"
      Read sector error (Cyl:  0, Head: 1, Sec:   28): Device error detected "AMN"
      61 REF_TMR.............................. : Read with errors
      5B MODEL_ID............................. : Ok
      5E ARCOTBL2............................. : Ok
      77 PROC_CNT............................. : Ok
      75 STR_RSRT............................. : Ok
      04 CONFIG............................... : Ok
      05 SNTBL................................ : Ok
      08 BISPT................................ : Ok
      09 BRSLT................................ : Ok
      7B CRITERIA............................. : Ok
      0B FINALTST............................. : Ok
      0A ARCOTBL.............................. : Ok
      7A GEO_TBL.............................. : Ok
      0C VLISTHDR............................. : Ok
      0D VLIST................................ : Ok
      55 FDT_TBL.............................. : Ok
      54 RDRTY_01............................. : Ok
      0E SLISTHDR............................. : Ok
      0F SLIST................................ : Ok
      11 ALIST................................ : Ok
      81 RLIST................................ : Ok
      64 ALISTHDR............................. : Ok
      82 RLIST_H.............................. : Ok
      15 SRVTBL2.............................. : Ok
      12 TMPRTR............................... : Ok
      17 OVERLAY.............................. : Ok
      10 TLIST................................ : Ok
      16 CHN_TBL2............................. : Ok
      51 M30CODE.............................. : Ok
      68 DLIST_H.............................. : Ok
      26 DLISTOR.............................. : Ok
      95 DLISTOR2............................. : Ok
      18 HDAF_RPT............................. : Ok
      19 HD_DLIST............................. : Ok
      1A LUL.................................. : Ok
      1B RCOSCRPT............................. : Ok
      1D ERRTRK............................... : Ok
      1E ERRZN................................ : Ok
      1F ERRDRV............................... : Ok
      20 SRTDATA.............................. : Ok
      21 SRTSRVO.............................. : Ok
      22 PARAM................................ : Ok
      23 WKHEAD............................... : Ok
      24 TSTPI................................ : Ok
      25 MRTUNEMT............................. : Ok
      1C BTIME................................ : Ok
      62 HD_BER............................... : Ok
      4E MRRTABLE............................. : Ok
      6D OWC_CSM.............................. : Ok
      6C WC_CSM............................... : Ok
      28 ERR_HDR.............................. : Ok
      29 SMRT_HDR............................. : Ok
      2A BISP_HDR............................. : Ok
      2B SERIAL_H............................. : Ok
      2C PES_HDR.............................. : Ok
      2D SVTRC_HD............................. : Ok
      42 CAPSEL............................... : Ok
      43 CURBPI............................... : Ok
      44 AZLCSM............................... : Ok
      45 AZL_CSM0............................. : Ok
      46 AZL_CSM1............................. : Ok
      47 AZL_CSM2............................. : Ok
      48 AZL_CSM3............................. : Ok
      49 AZL_CSM4............................. : Ok
      4A AZL_CSM5............................. : Ok
      4B AZL_CSM6............................. : Ok
      5C PWR_CNT.............................. : Ok
      56 SPN_MNTR............................. : Ok
      57 IRD_DOWN............................. : Ok
      31 ATW_TEST............................. : Ok
      58 ATW_TST2............................. : Ok
      38 SPESB0............................... : Ok
      39 SPESB1............................... : Ok
      3A SPESB2............................... : Ok
      3B SPESB3............................... : Ok
      3C SPESB4............................... : Ok
      73 LOW_BER.............................. : Ok
      27 GEO_00............................... : Ok
      90 TNU_LOG.............................. : Ok
      91 LONGSEEK............................. : Ok
      32 SMART................................ : Ok
      33 SMRT_LOG............................. : Ok
      83 SDATAMEM............................. : Ok
      3D ELOG................................. : Ok
      36 SV_TRACE............................. : Ok
      37 PES_LOG.............................. : Ok
      40 IPC_DBG.............................. : Ok
      59 PMP.................................. : Ok
      69 DLIST................................ : Ok
      7C FOD_FH............................... : Ok
      7E FOD_DATA............................. : Ok
      87 FOD_FREQ............................. : Ok
      7D FOD_VU............................... : Ok
      7F FOD_FHT.............................. : Ok
      86 FOD_RST.............................. : Ok
      9A FOD_RSTH............................. : Ok
      88 HSC_CYL.............................. : Ok
      8C FOD_FH2.............................. : Ok
      8B FOD_DAT2............................. : Ok
      89 FOD_RST2............................. : Ok
      8A FOD_FRE2............................. : Ok
      8D FOD_INSI............................. : Ok
   ****************************************

   Reading service tracks
   ****************************************
      Into folder............................. : \Data\SABackup\Tracks
      Composite reading

      Read sector error (Cyl:  0, Head: 0, Sec:   27): Device error detected "AMN"
      Read sector error (Cyl:  0, Head: 0, Sec:   28): Device error detected "AMN"
      Cylinder:  0............................ : Read with errors
      Cylinder:  1............................ : Ok
      Cylinder:  2............................ : Ok
      Cylinder:  3............................ : Ok
      Cylinder:  4............................ : Ok
      Cylinder:  5............................ : Ok
      Cylinder:  6............................ : Ok
      Cylinder:  7............................ : Ok
      Cylinder:  8............................ : Ok
      Read sector error (Cyl:  9, Head: 0, Sec:  101): Device error detected "AMN"
      Cylinder:  9............................ : Read with errors
      Read sector error (Cyl: 10, Head: 0, Sec:    1): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    2): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    3): Device error detected "AMN"
      Read sector error (Cyl: 10, Head: 0, Sec:    4): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    5): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    6): Device error detected "AMN"
      Read sector error (Cyl: 10, Head: 0, Sec:    7): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    8): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:    9): Device error detected "UNC"
      Read sector error (Cyl: 10, Head: 0, Sec:   10): Device error detected "UNC"
      Cylinder: 10............................ : Read with errors
      Cylinder: 11............................ : Ok
      Cylinder: 12............................ : Ok
      Cylinder: 13............................ : Ok
      Cylinder: 14............................ : Ok
      Cylinder: 15............................ : Ok
      Cylinder: 16............................ : Ok
      Cylinder: 17............................ : Ok
      Cylinder: 18............................ : Ok
      Cylinder: 19............................ : Ok
      Cylinder: 20............................ : Ok
      Cylinder: 21............................ : Ok
      Cylinder: 22............................ : Ok
      Cylinder: 23............................ : Ok
      Cylinder: 24............................ : Ok
      Cylinder: 25............................ : Ok
      Cylinder: 26............................ : Ok
      Cylinder: 27............................ : Ok
      Cylinder: 28............................ : Ok
      Cylinder: 29............................ : Ok
      Cylinder: 30............................ : Ok
      Cylinder: 31............................ : Ok
      Cylinder: 32............................ : Ok
      Cylinder: 33............................ : Ok
      Cylinder: 34............................ : Ok
      Cylinder: 35............................ : Ok
      Cylinder: 36............................ : Ok
      Cylinder: 37............................ : Ok
      Cylinder: 38............................ : Ok
      Cylinder: 39............................ : Ok
      Cylinder: 40............................ : Ok
      Cylinder: 41............................ : Ok
      Cylinder: 42............................ : Ok
      Cylinder: 43............................ : Ok
      Cylinder: 44............................ : Ok
      Cylinder: 45............................ : Ok
      Cylinder: 46............................ : Ok
      Cylinder: 47............................ : Ok
      Cylinder: 48............................ : Ok
      Cylinder: 49............................ : Ok
      Cylinder: 50............................ : Ok
      Cylinder: 51............................ : Ok
      Cylinder: 52............................ : Ok
      Cylinder: 53............................ : Ok
      Cylinder: 54............................ : Ok
      Cylinder: 55............................ : Ok
      Cylinder: 56............................ : Ok
      Cylinder: 57............................ : Ok
      Cylinder: 58............................ : Ok
      Cylinder: 59............................ : Ok
      Cylinder: 60............................ : Ok
      Cylinder: 61............................ : Ok
      Cylinder: 62............................ : Ok
      Cylinder: 63............................ : Ok
   ****************************************


Read ROM via terminal
****************************************
   Into folder............................. : \Data\ROM\good

   ROM reading in progress...
   Data availability checking.............. : Ok
   Checksum verification................... : Ok

   Information about dump:
   Dump size............................... : 0x40000 bytes
   Firmware checksum....................... : Ok
   Firmware version........................ : xx100-08
   Flash version........................... : xx08tm59
   Head map................................ : 1, 0
****************************************
Test completed

还好更换好磁头后, 读固件还可以, 也能访问数据了, 但些时数据恢复公司联系, 说了些让我迷惑的话让我先停下来不要处理. 大概是说这个可能不是客人,先不管是不是了,磁头都换上了, 先读点数据截图给客人确认再说是否继续.
虽然换上了全好的磁头, 但读数据很慢, 加上特殊控制来读取数据, 读了很长时间才几G, 扫出来给客人看看, 是船厂的资料. 截图给客人确认一下继续.
过了一会数据公司反馈这些不是客人的文件….折腾了一天的白干了. 第二天, 数据恢复公司再要了些文件跟客人再次确定, 可以100%这不是客人原来的盘了. 这到底是怎么回事, 到底为什么客人的不是自己的数据. 这些船厂的资料根本不是客人.

原来,这个三星移动硬盘是很久之前恢复过的, 恢复过来的数据放到新盘, 新盘可能坏了恢复不回来, 然后拿这个三星的移动硬盘再次恢复,但万万没想到盘里面的数据竟然不是自己的, 那么看来就解释得通为什么盘标签和板都对不上. 奇怪的知识又增加了.

硬盘优盘内存卡送修的同时需要准备什么资料协助恢复数据?
摔坏硬盘数据恢复-摔过的硬盘应该怎么处理才能恢复数据？

如果有任何疑问或者需要帮忙的欢迎随时联系我们

联系人江生
数据热线（微信whatsapp）+86 18620923827
QQ2332704809
数据恢复blog数据恢复博客
数据恢复论坛数据恢复论坛
我们推荐比较稳定的存储内存卡硬盘型号
一体FLASH方案中心一体FLASH数据恢复方案

相关文章

  • 数据恢复软件报错原因HDDs RAM reading error Device Error Detected: "SCT INVALID FUNCTION CODE"

    今天在恢复一个西数硬盘数据的时候遇到问题HDDs RAM reading error Device Error Detected: "SCT INVALID FUNCTION CODE"， WD20EJRX-89G3VY0 硬盘电路板PCB 2060-771945-002 REVA…

  • 西数硬盘WD5000AAKX-22ERMA0二次数据恢复 硬盘马达损坏盘片划伤数据恢复

    西数硬盘WD5000AAKX-22ERMA0二次数据恢复 硬盘马达损坏盘片划伤数据恢复 接到这个西数台式机硬盘是一个数据恢复公司转过来的单, 说是因为硬盘马达损坏不转, 把盘片换到了另一个盘体上能读数据,但读数据很慢. 接到盘后马上拆开检测,他们说可能是由于没装好的原因导致,那很好办, 全部拆下来再重新装一次. ******************************************************************* ******************** 11/2/2021 12:05:09 PM ******************** ******************************************************************* Techno…

  • 希捷硬盘数据恢复ST31500541AS电路板100535537REVA

    希捷硬盘数据恢复ST31500541AS电路板100535537REVA 一般遇到硬盘有坏道情况的。 我们建议尽快找专业公司处理不要自己不断尝试去读数据。 首先，你不断尝试情况可能越来越坏，因为电脑是不是跳过坏道的地方去读其它数据，当你不断尝试的时候，磁头可能会在那个坏道的地方不断尝试，不停的去磨那个地方，然后盘片就可能在不断尝试的过程中划伤了。 当然这个不是所有案例都会发生这些情况，这个也要看是某些批次或者品牌的硬盘。 这个就是为什么常常听到由于划伤导致硬盘数据无法恢复。 摔坏硬盘数据恢复-摔过的硬盘应该怎么处理才能恢复数据？ Rst 0x20M (P) SATA Reset (S) SATA Reset…

  • 希捷ST320LT020笔记本硬盘数据恢复转动正常不认盘数据恢复

    希捷ST320LT020笔记本硬盘数据恢复转动正常不认盘数据恢复 Model : ST320LT020-9YG142 Serial : W04XXXXX Firmware : 0003LVM1 Capacity : 320 GB (625…
